Name: CSJMDKST Oil/Water Separator Service Kit
Brand: Purotech
SKU: CSJMDKST

Midi (full kit) service kit

The Jorc Midi (full kit) is served by the Purotech CSJMDKST service kit.

Jorc Midi Purotech full service kit.

Made to the drawing. Every kit is made to a dimensioned drawing, with fill weights controlled at build, in Great Britain.

The separator this fits

Placeholder schematic only, not indicative of the actual Jorc Midi (full kit).

The Jorc Midi (full kit) is a compressed-air oil/water separator. It uses replaceable filter bags, which is what the Purotech kit on this page supplies. The unit, lid and pipework stay in place.

Check the label on your unit against the part number above. If it does not match exactly, tell us what it says and we will identify it.

Full kit or single bags

The CSJMDKST full kit is a white bag and a carbon bag. Order them together, or either bag on its own.

CSJMDKST full kit: white and carbon bags (this page)
CSJMDW white bag only
CSJMDCST carbon bag only

What's in the box

2 bags. Every bag supplied is pictured below, so you can check what arrives against what you ordered.

× 1

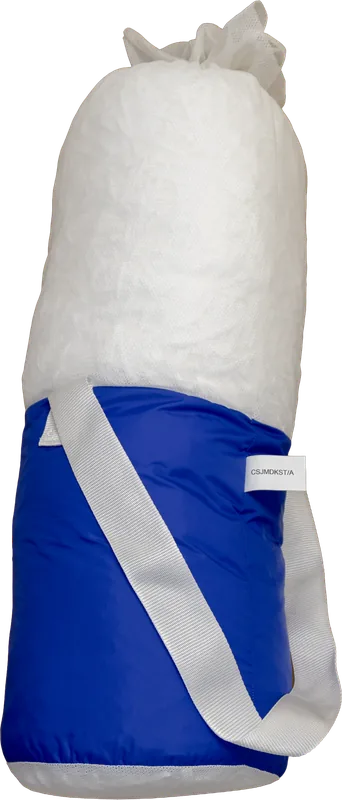

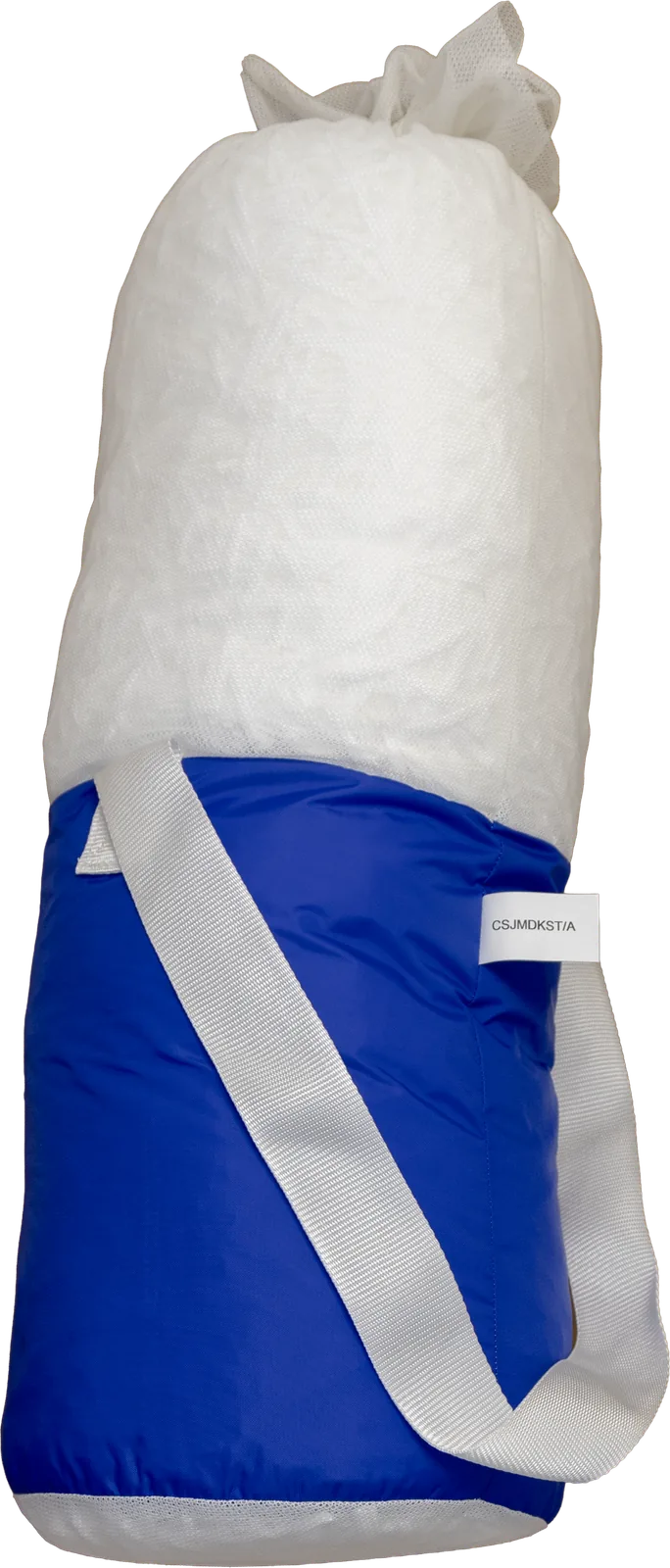

CSJMDKST/A

White bag

Ø264 × 680 mm
× 1

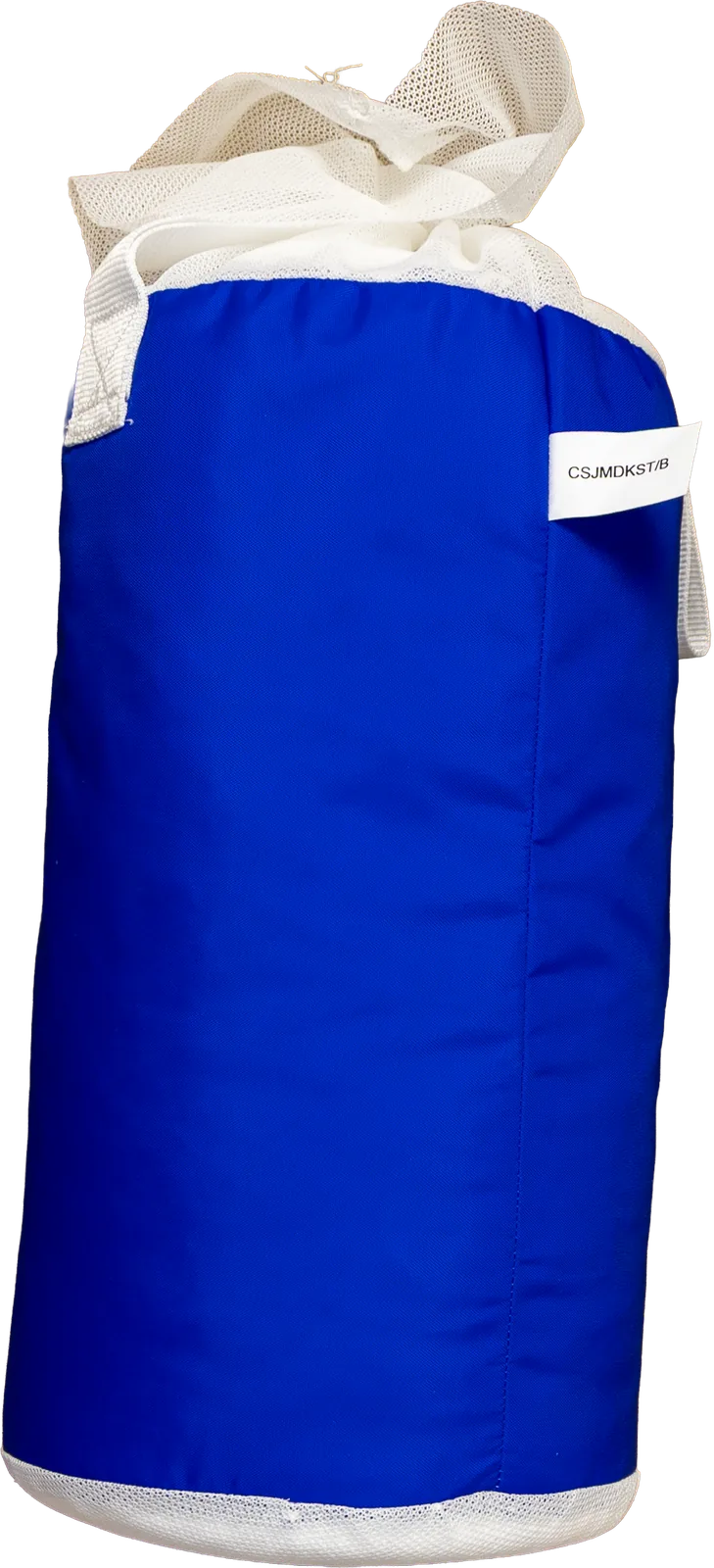

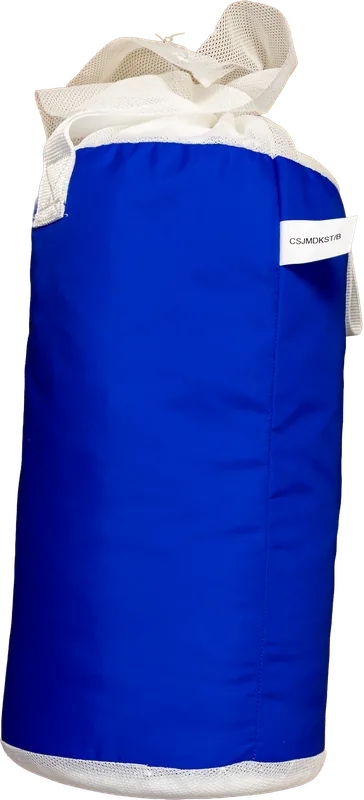

CSJMDKST/B

Carbon bag

Ø264 × 480 mm

What you are replacing

2 bodies in the kit. Compare against what you removed. Dimensions are given per body, not per kit.

Part number	Dimensions
CSJMDKST/A	Ø264 × 680 mm
CSJMDKST/B	Ø264 × 480 mm

Full specification for CSJMDKST →

The same kit also fits these makes

CSJMDKST is a single kit serving 2 models across 2 manufacturers.

Boge

CC 20
